5MP CCTV Security Camera Tester - 5" AHD/TVI/CVI/CVBS Analog Video Tester with PTZ Control, Cable Testing & HDMI Interface (HDMI Input) - Model 5900S - Perfect for CCTV Installation, Maintenance and Surveillance System Setup
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:21 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:12399516
Product Description

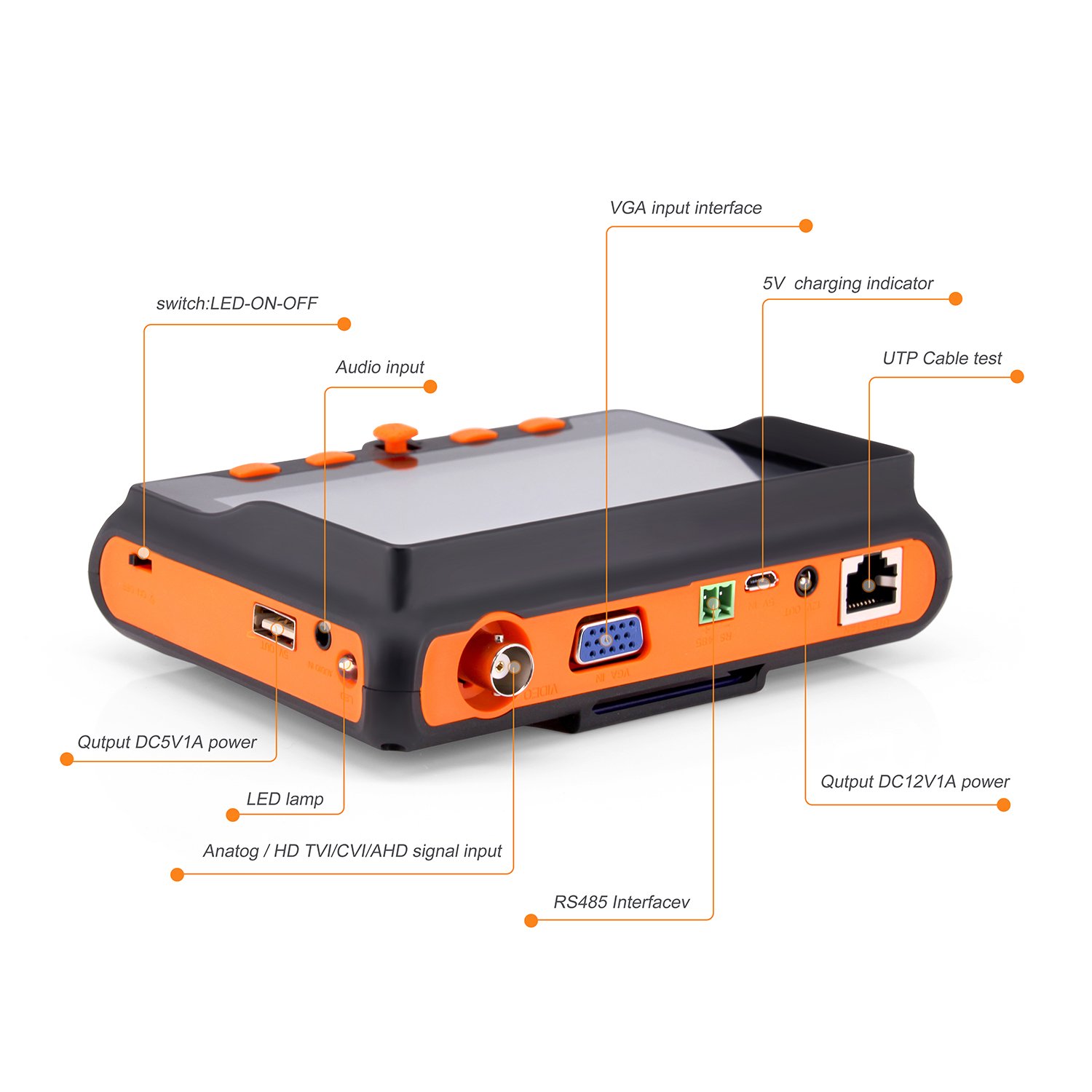

Package include: 1x HD coaxial tester 1x Adapter DC5V 1.0A（with USB cable 1x I bulit-in 3.7V Lithium polymer bottery,4000mAh 1x BNC cable 1x RS485 connector 1x 12V OUTput Power cable 1x Audio cable 1x BNC / UTP cable test box 1x Wrist band 1x Instruction Manual 1x Portable tool kit Product Features: Video signal test Vedio monitor tester supports PAL/NTSC standard video signals Audio test Test the audio input of the pickup device. Use audio cables to connect testers and pickups Network cable test Pass the UTP CABLE TEST port on the meter to test the connection of the network cable VGA/HDMI input Support VGA/HDMI 1.1 Compliant Digital input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is 2560×1920 TVI/CVI/AHD/CVBS Camera Testing Automatically identify video formats and automatically switch tests Lighting Comes with LED lights to help engineers install and maintain at night
Product Features
Support 5mp TVI, AHD HD coaxial camera, support 4mp CVI high-definition coaxial camera, and compatible (720p, 960p, 1080p) CVI, TVI, AHD HD coaxial camera and support (CVBS) analog camera, audio signal input test test The sound is normal, it also comes with a DC 12V 1A output, can give camera power supply

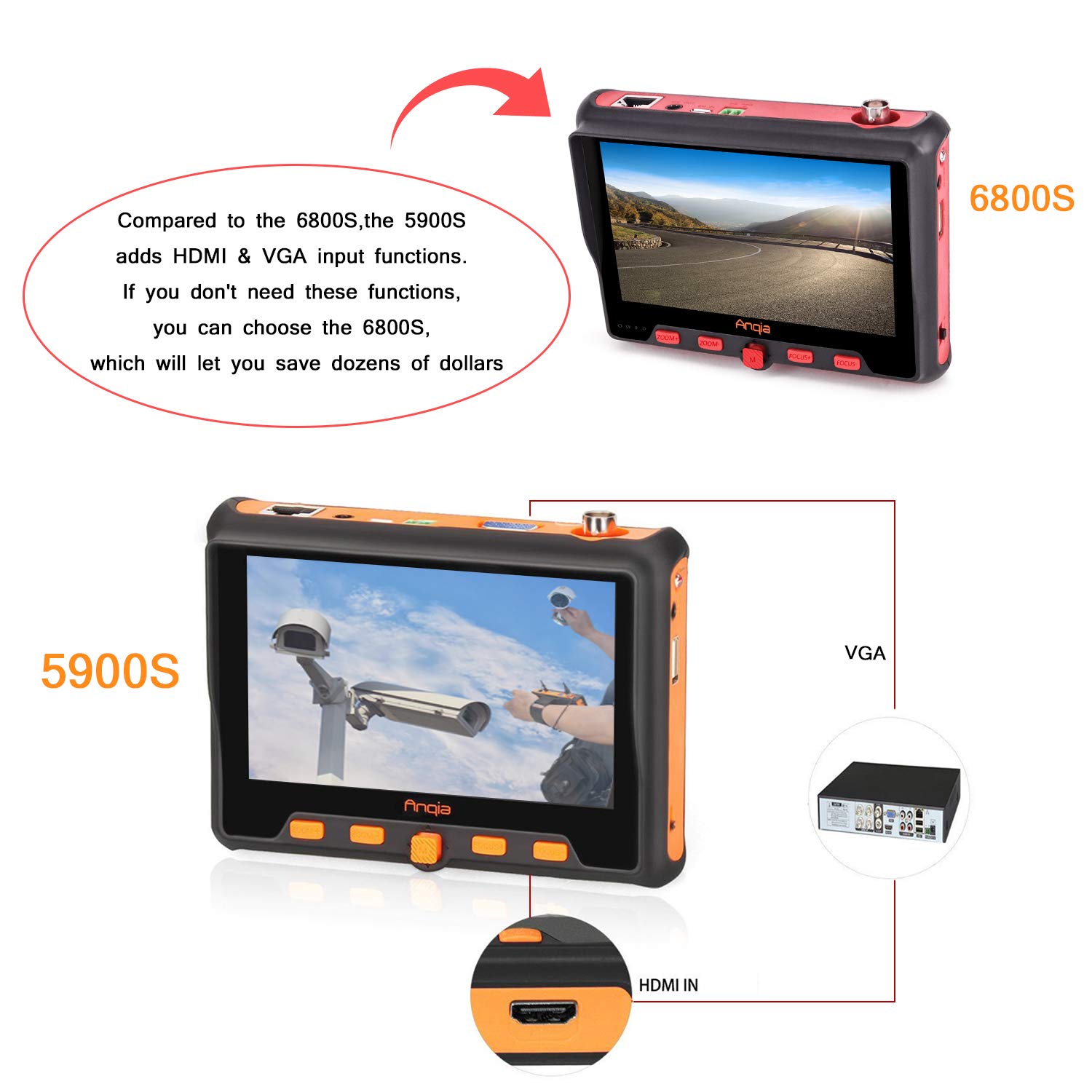

The tester supports 1080p HDMI input, and supports VGA input, supports 1024 * 768, 1289 * 1024 resolution, requires VGA to enter the menu to select VGA mode
PTZ control RS485 control, Baud 1200 ~ 115200bps, compatible with PELCO-D / P protocol. UTP cable / BNC cable test with indicator light, test distance up to 100-150 meters
5-inch high-definition screen display, hand-held hook, easy and convenient, long-life lithium-ion polymer battery, can be used normally after charging for 4 hours, USB 2.0 interface provides 5V / 1A emergency power output, it can even be used as emergency mobile power (Only for Android phones)
The portable travel bag is packaged so that you can carry it on your hand, and you can place your pen and mobile phone, bid farewell to clunky boxes, and make your work easier.We are the original manufacturer of the tester, with quality assurance, one year replacement, and can customize the customer's brand, we can help you OEM for free (if you need to customize your own brand, please tell us your needs by e-mail)
Customer Reviews
It worked as I expected as advertised excellent , will make service convenient as can check the connections from sources to dvrOnly thing was the bnc test connector cord , one bnc end came off Held on for test with blue tape, other than that an excellent product servicing CVI - analog video systemsThank you
