H81a Motherboard - SATA 3.0 High Speed Transfer, VGA & HDMI Ports, WiFi Support, NGFF M.2 Interface, Multi-Phase Power for Xeon E3 V3 - Perfect for Gaming PC Builds and Home Office Workstations
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:14 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:27285433
Product Description

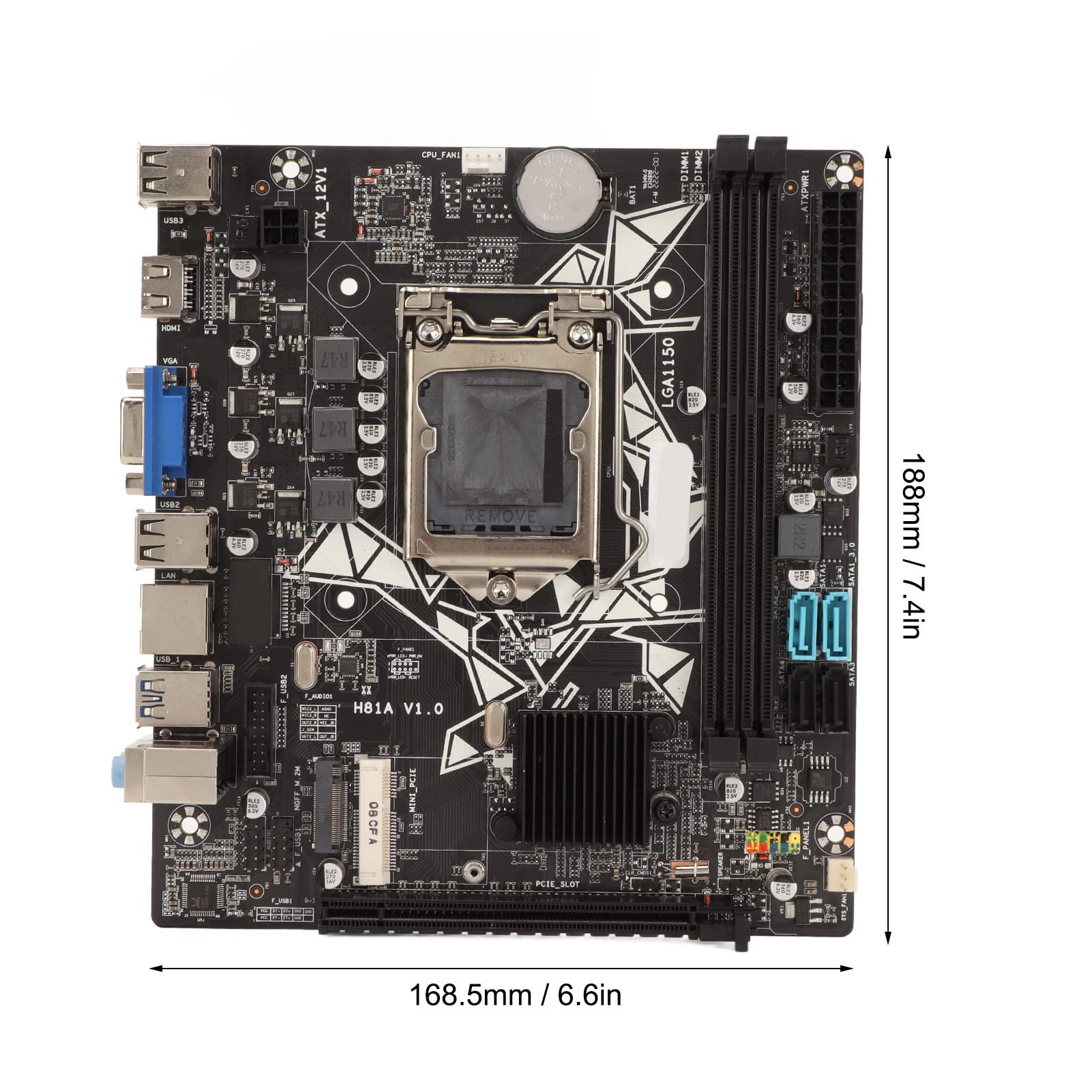

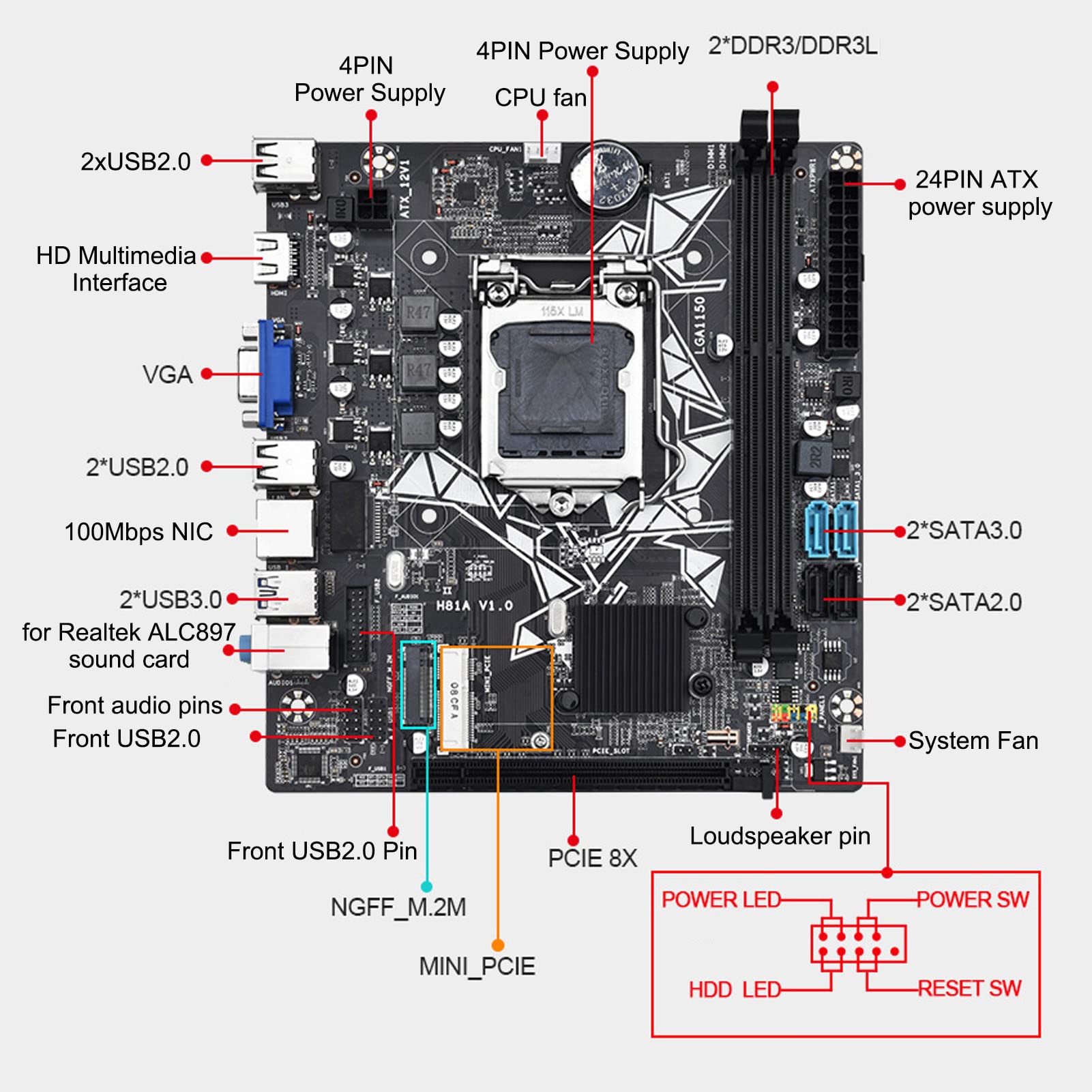

Specification:Item Type: H81A MotherboardMaterial: PCBModel: H81AMotherboard Architecture: M ATXMotherboard Size: Approx. 188 x 168.5mm / 7.4 x 6.6inCPU Slot Type: Support for LGA 1150 Series CPUsNIC: 100 Gigabit NICGraphics Card Slot: PCIE 8Xx1Supported Memory Types: 2xDDR3,DDR3LMaximum Memory Capacity: 16GBSATA Interface: SATA3.0x2,SATA3.0x2,NGFF M.2Mx1USB Ports: USB3.0x2,USB2.0x8 (Front USB2.0x4)On Board Sound Card: For ALC897 Audio CodecPower Connector: 24pin x 1, 8pin x 1Expansion Connector: HD Multimedia Interfacex1, VGAx1, Min PCIEx1Battery Type: CR2032 Button Cell (Built in)Battery Capacity: 240mAhFix the motherboard in the main case, and then connect the connectors according to the corresponding marks. Verify that the motherboard power supply is properly connected: 1. Make sure the power adapter's power cord is properly plugged into the ATX power connector. The motherboard may contain 24 pin EATXPWR and 8 pin EATX12V, make sure that both 8 pin EATX12V and 24 pin EATXPWR are connected to the power adapter. Package List:1 x Motherboard1 x SATA Cable1 x Bezel
Product Features

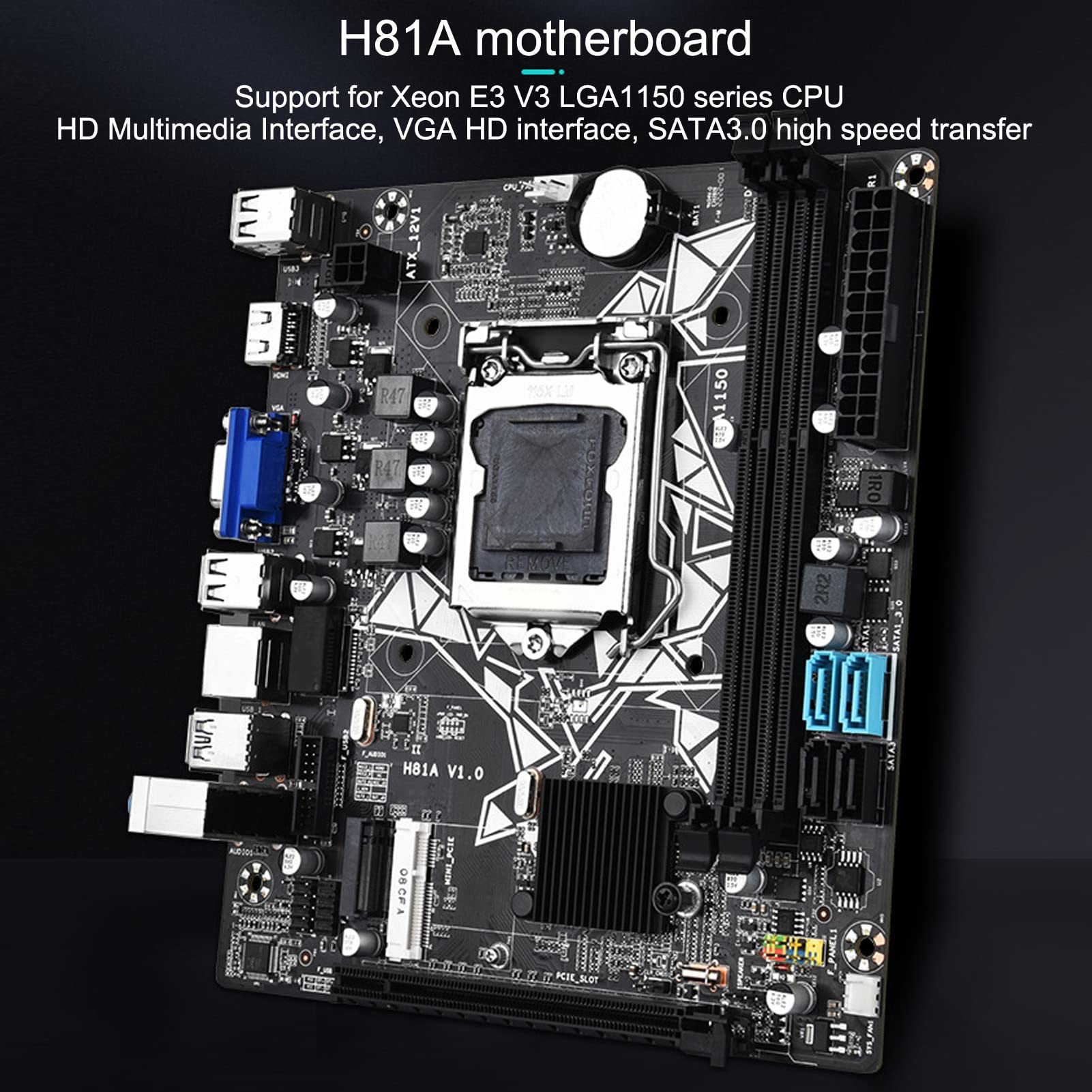

CPU SLOT TYPE PC motherboard support for Xeon E3 V3 for LGA150 series CPU, HD Multimedia Interface, VGA HD interface, SATA3.0 high speed transfer.

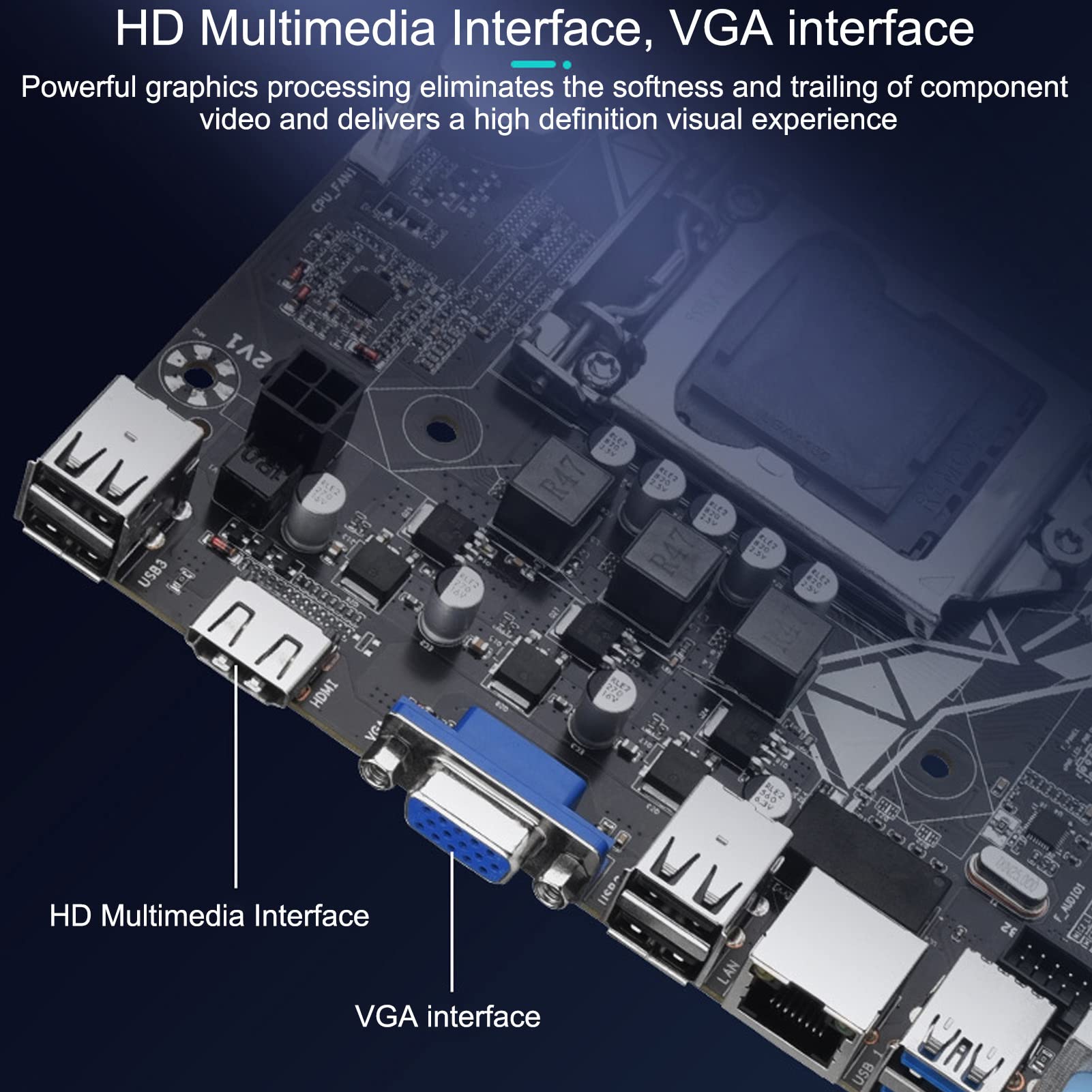

GRAPHICS PROCESSING POWER HD Multimedia Interface and VGA HD interface, powerful graphics processing power, eliminating the softness and trailing of component video and providing a high definition visual experience.

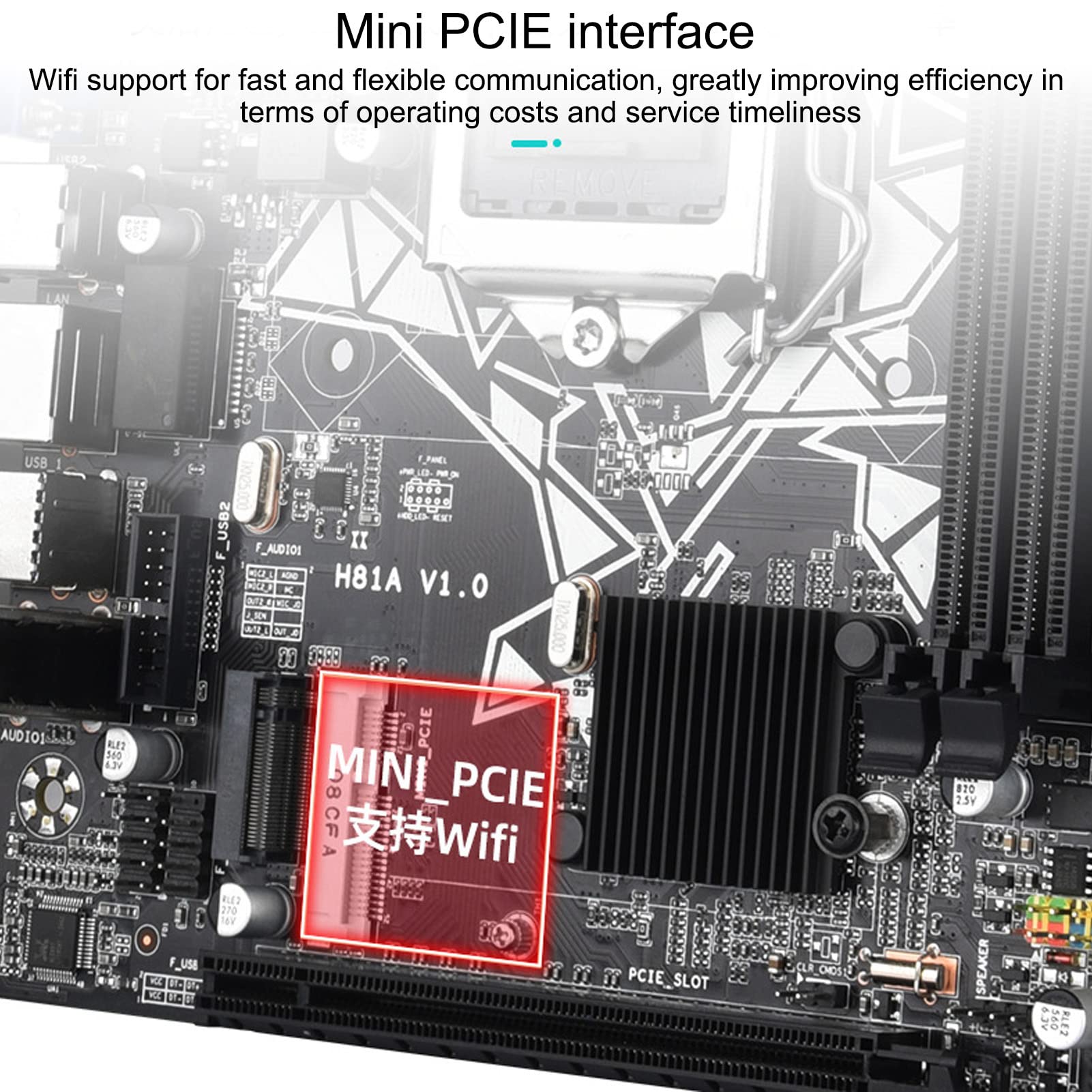

WIFI SUPPORT Mini PCIE interface, supporting Wifi transmission, fast and flexible communication, greatly improving efficiency in terms of operating costs and service timeliness

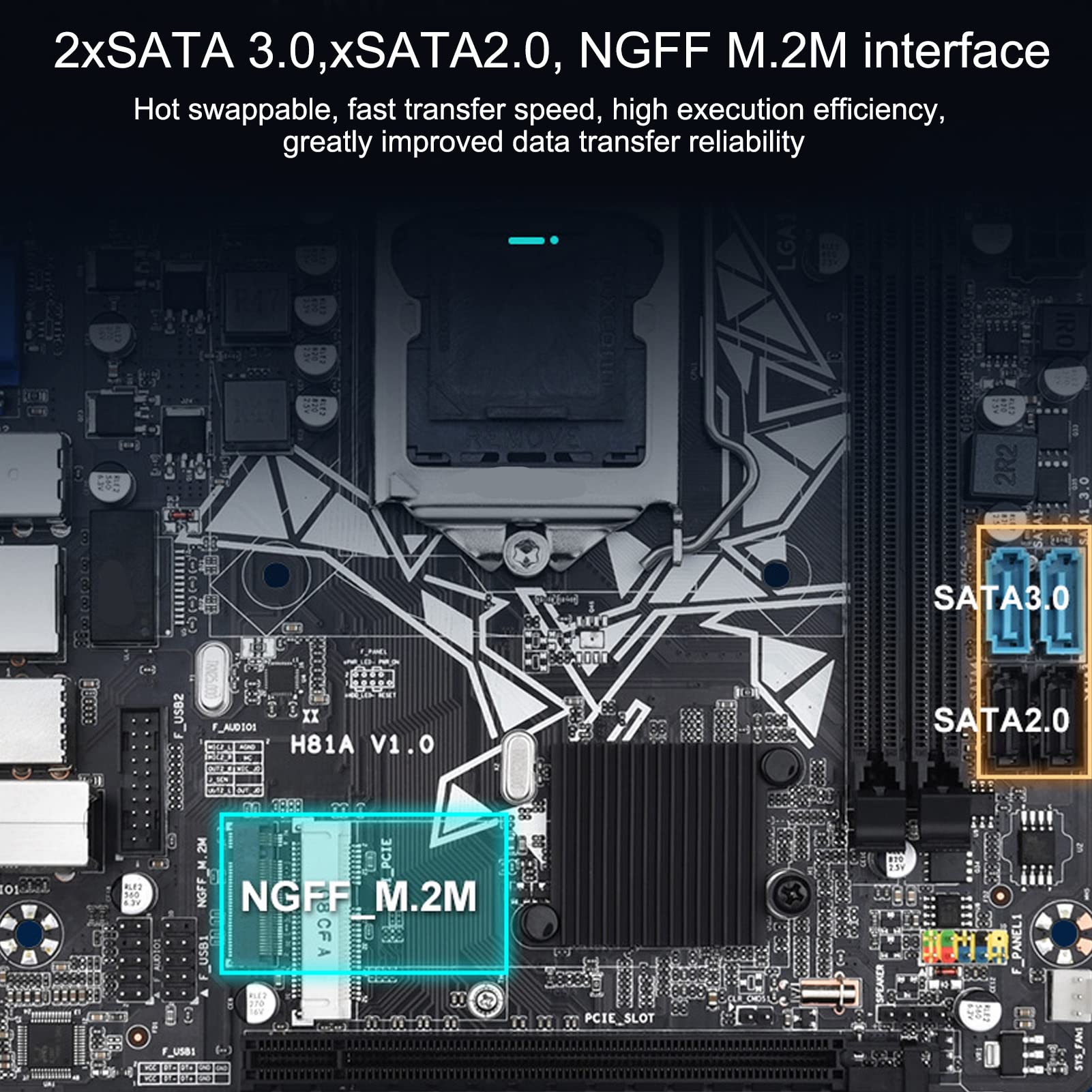

INTERFACE 2xSATA3.0,2xSATA2.0,NGFF M.2M interface, support hot swappable, fast transmission speed, high execution efficiency, greatly improve the reliability of data transmission
MULTI PHASE POWER SUPPLY Stable and precise power supply, even distribution, thermal load of various power supply chipsets to improve CPU performance, multi phase power supply, more stable and durable
