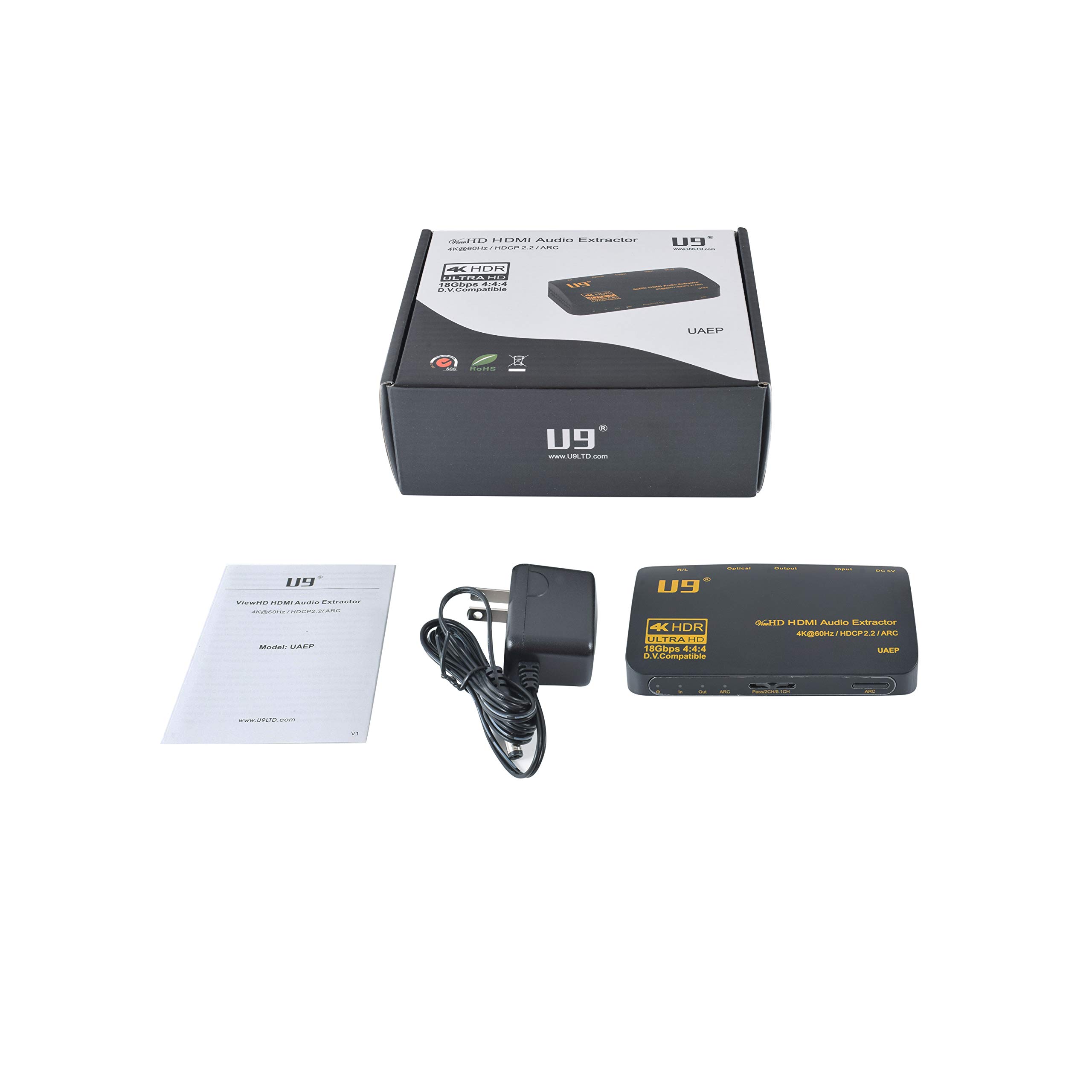

U9 ViewHD HDMI 2.0b 18Gbps 4K@60Hz HDR Audio Extractor with RCA Stereo & Optical Output | Supports Dolby Digital Plus, HDCP 2.2, ARC | Perfect for Home Theater, Gaming & 4K TV Setup

Product Description

8K HDMI Cable VHD-UHAE UAEP VHD-UHAE2 VHD-1X2HSACi UHD1X2SA Buying Options Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews — 3.7 out of 5 stars 110 4.1 out of 5 stars 30 3.7 out of 5 stars 110 3.9 out of 5 stars 124 4.4 out of 5 stars 216 Price — no data $54.95$54.95 $19.95$19.95 $54.95$54.95 — no data $43.95$43.95 HDMI Version HDMI v2.1 8K@60Hz HDMI v2.0b, HDCP 2.2 and CEC pass-though, 4K@60Hz, HDR, Dolbi Vision, 3D HDMI v2.0b, HDCP 2.2 and CEC pass-though, 4K@60Hz, HDR, Dolbi Vision, 3D, ARC HDMI v2.0b, HDCP 2.2 and CEC pass-though, 4K@60Hz, HDR, Dolbi Vision, 3D, ARC HDMI v1.3, 1080P@60Hz & 3D HDMI v2.0b, HDCP 2.2, 4K@60Hz, HDR, Dolbi Vision, 3D Analog Stereo Audio Output no data 3.5mm RCA L/R 3.5mm RCA L/R 3.5mm Toslink Optical Audio Output no data ✓ ✓ ✓ ✓ ✓ Dedicated HDMI Audio Output no data no data no data For HDMI v1.3 & latest AVR no data ✓ Audio EDID Management no data ✓ ✓ ✓ ✓ no data Extracted Audio Formats no data Up to DD/DTS 5.1CH and DD+ Up to DD/DTS 5.1CH and DD+ All Audio formats supported by HDMI 2.0b Receiver Up to DD/DTS 5.1CH All Audio formats supported by HDMI 2.0b Receiver Audio Output Compatibility no data DD/DTS 5.1CH, DD+ Receiver / Soundbar DD/DTS 5.1CH, DD+ Receiver / Soundbar Special EDID settings to fully utilize HDMI v1.3, v1.4, v2.0 Audio Receivers DD/DTS 5.1CH Receiver / Soundbar Special EDID settings to fully utilize HDMI v1.3, v1.4, v2.0 Audio and Video Receivers Audio Return Channel / ARC no data no data ARC @ Optical output ARC Audio @ Optical & HDMI Out2 ports at the same time no data no data U9 ViewHD 4K HDMI Input and ARC Audio Extractor, Model: UAEP Product Description This is the latest true HDMI 2.0b 18Gbps YUV 4:4:4 4K@60Hz Audio Extractor with ARC Support, compact size, and powerful performance. It is not a cheaply made 4:2:2 or 4:2:0 4K60Hz knockoff, a lot of lower grade 4K@30 products can also do 4K@60, but they can't support full HDMI 2.0 4K@60Hz features. Support all HDMI v2.0b video audio formats (pass-through) from HDMI input to HDMI output. Please use 18Gbps HDMI cable under 15ft for guaranteed performanceSupport HDCP 2.2 and CEC pass-thoughThree audio EDID settings: 2CH for RCA L/R stereo analog audio, 5.1CH for the optical output to Dolbi Digital / DD+ Soundbar; Pass for TV's speaker audio.Support HDMI Audio Return Channel / ARC function, ARC audio is available from the Toslink optical output; connect the HDMI cable to the HDMI ARC port of the TV and make sure to enable the CEC function for the TV. In ARC mode, the TV's own built-in speaker is disabled.Ideal for Dolbi Digital / DTS 5.1 and Dolbi Digital Plus receiver and Soundbar application; if there is no sound or broken sound for DD+ audio, please upgrade to a premium quality optical cable that can support DD+; if your soundbar or receiver doesn't support DD+, but your HDMI source can support DD+, please disable DD+ from the HDMI source.The analog stereo RCA L/R output has a 2watt rated power amplifier to deliver sufficient volume to headphonesCompact size, light-weight, strong, and solid ABS constructionPackage Includes: UAEP HDMI Audio Extractor, 100V-240V AC to 5V1A DC power adapter with US plug, and user manual U9 ViewHD HDMI Extractor Model: UAEP and Application Details HDMI Version Latest HDMI v2.0b, HDCP 2.2, 18Gbps, 4:4:4, Audio Return Channel "ARC", support the full technical specifications of HDMI v2.0, no compromise. (Does not support eARC, which is HDMI v2.1) HDMI Input / Output One HDMI Input to One HDMI Output, the HDMI output signal is always identical to HDMI input signal, no degradation or modification; HDCP and CEC pass-through. Support all audio formats. HDMI Video Details: Support all HDMI 2.0b, 4K@60Hz/50Hz NTSC and PAL displays, and HDR & Dolbi Vision video formats. Please use 18Gbps HDMI cable under 15ft for reliable performance. RCA L/R Stereo Audio Output When the HDMI input audio format is stereo, the RCA L/R output will have analog stereo audio output. The volume is strong for headphone application. Please set the audio EDID selection to 2CH for RCA L/R audio outpu; if no sound, make sure the HDMI source send audio in stereo format. The optical output and HDMI output have the same stereo audio signal at the same time. The RCA L/R output has no sound if the incoming HDMI audio format is higher than 2CH / stereo. Toslink / Optical Audio Output Supports 2CH, Dolbi Digital / DTS 5.1CH and Dolbi Digital Plus. Use the 5.1CH EDID selection to get DD/DTS 5.1CH or DD+ audio . Troubleshooting Note: the receiver must support DD/DTS 5.1CH and DD+ audio format to use this setting. If the receiver does not support DD+, make sure to disable DD+ audio output option in the HDMI source to avoid no audio problem. If your receiver supports DD+, but no sound or broken sound, please upgrade to an optical audio cable that can support DD+. ARC Audio Output Connect the HDMI output to the ARC HDMI input port of the TV, an HDMI v1.4 or latest cable is required for ARC. Use the ARC button to enable ARC mode and the ARC LED light should be on, and the TV should get into ARC mode at the same time. In ARC mode, the TV's built-in speaker is disabled. ARC audio signal (Dolbi Digital 5.1CH format) is available from the optical audio output port, a DD5.1CH soundbar or receiver is required. ARC audio is not available from the RCA L/R output. About 5.1CH EDID Setting The 5.1CH EDID setting supports Dolbi Digital Plus / DD+, if your receiver/soundbar does not support DD+, please manually disable DD+ from your HDMI source. If your receiver supports DD+, but has not audio or broken audio, please upgrade the Toslink cable.
