Oikabio 10W-20W Bluetooth Stereo Audio Amplifier Board Module - 12V/24V High Power Lossless Sound for Car Speakers, Home Theater, DIY Projects (2 Pack) - Perfect for Car Audio Upgrades, Home Entertainment Systems & DIY Electronics
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:73470364
Product Description

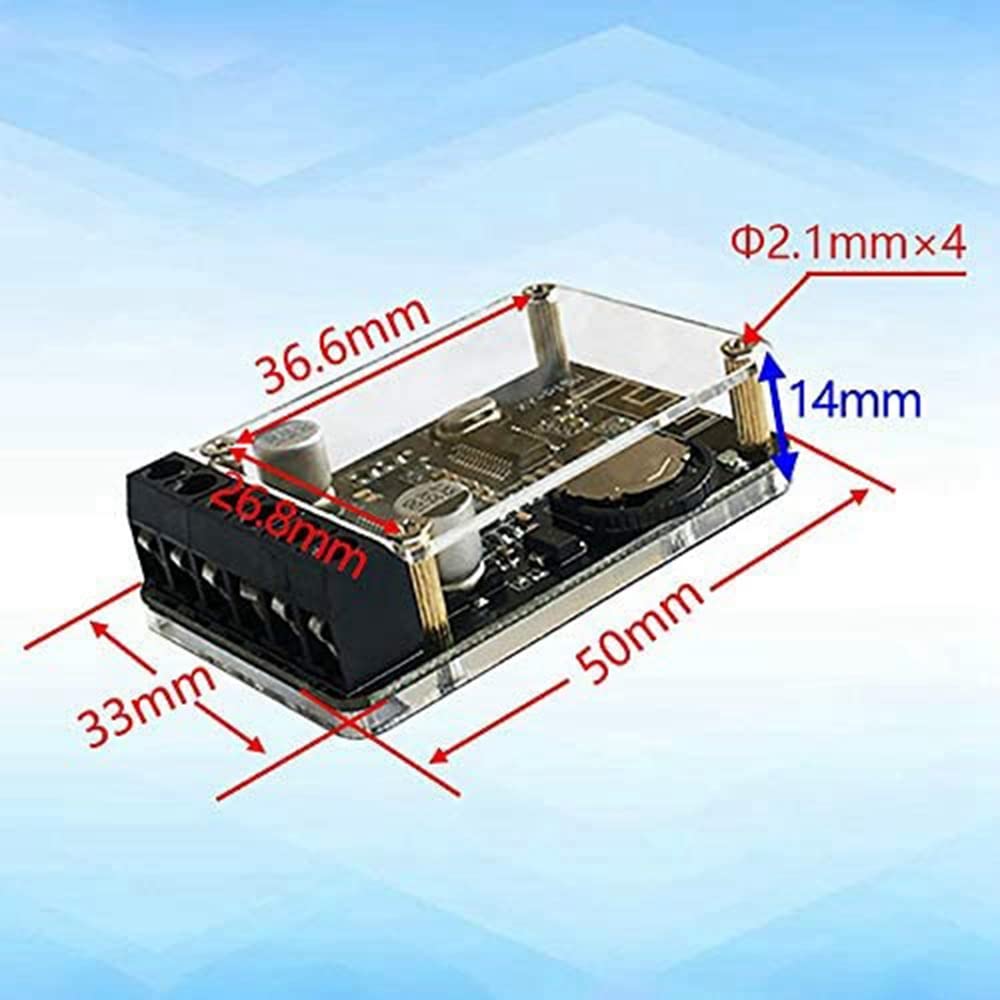

Oikabio Wide operating voltage rangeSuitable for many types of speakersAdjustment knobreverse polarity protectionShort circuit protection- overheat protectionBluetooth 5.0:Working voltage: DC 8v-24vCommunication distance: 15 (maximum)Output power (1khz):Output power 16w*2 in 12v 4ohmOutput power 10w*2 in 12v 8ohmOutput power 15w * 2 in 16v 4ohmOutput power 15w * 2 in 16v 4ohmOutput power 20w*2 at 20v 4ohmOutput power 30w*2 at 24v 4ohm (requires additional heat sink!)Matching speakers (30w~150v):8v 12 4 ohms on 12v8 ohm 8v 24 24v16 Ohm 8v 24 24vWorking temperature: -40Celsius~85CelsiusWorking humidity: 0% rh 95% rhColour:blackMaterial:abs+metalSize:50 x 35 x 14mmPackage Contents:2x Bluetooth 5.0 Amplificador BoardOnly the above package content, other are not included.Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed is +/- 1-3cm.
Product Features
Two channel 10w/15w/20w amplifier board work with multiple speakers (4-16 ohm), supporting bluetooth stereo audio input.
The input voltage range of bluetooth audio amplifier board is dc 8-24v. Current entry 2nd or above. Note the input voltage should not be more than 26v, otherwise the audio amplifier module be damaged.
gear pot to pause/play. Turn right to increase volume and turn left to decrease volume. Indicator light design helps you know the connection condition.
This bluetooth audio amplifier module comes with a protective , extremely protects the units from damaged, supporting reverse connection protection, short circuit protection and - overheat protection.
Using the latest bluetooth 5.0 version, the distance between wireless bluetooth audio input and maximum receiving is 15m (no obstacles).
