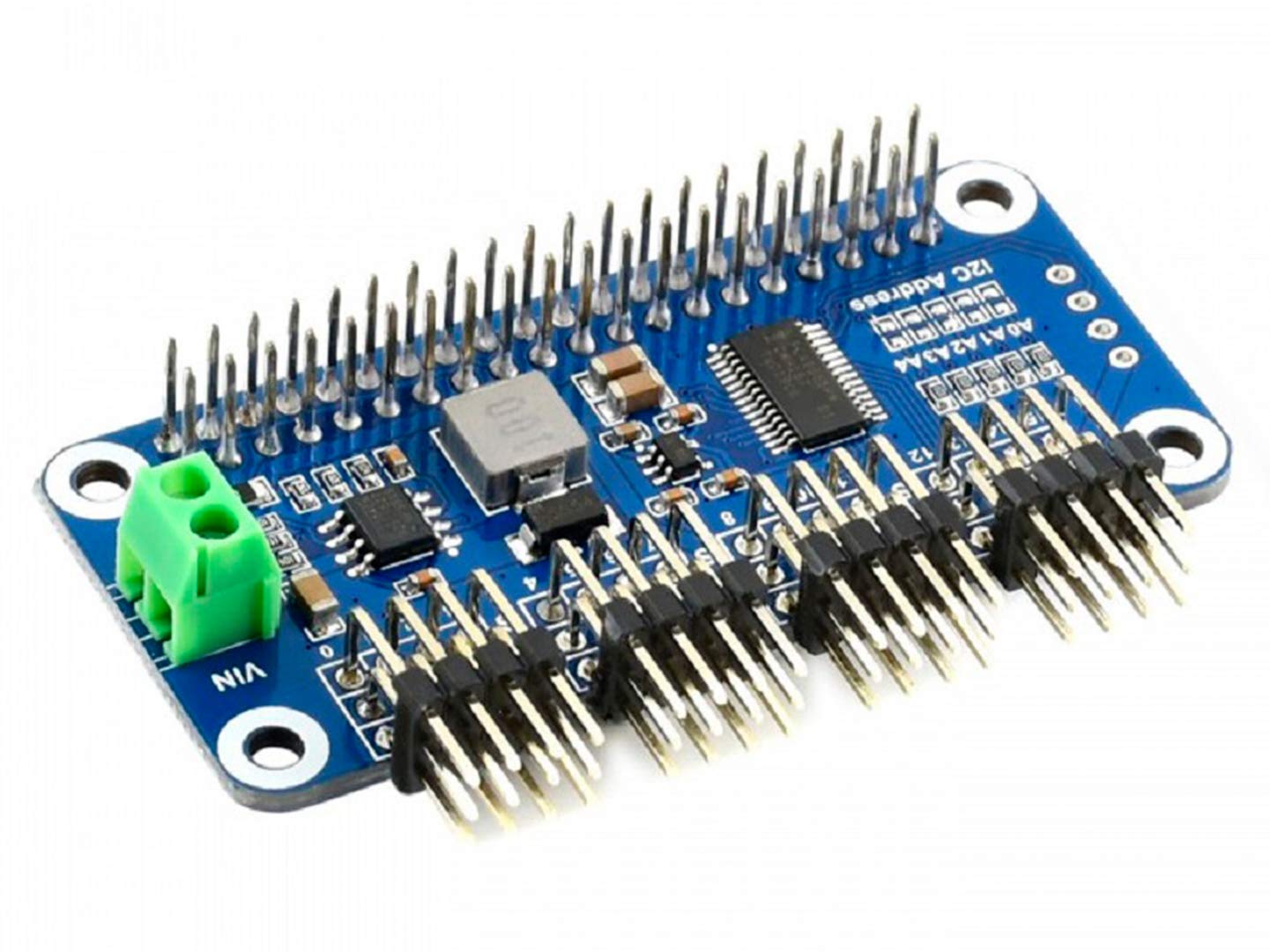

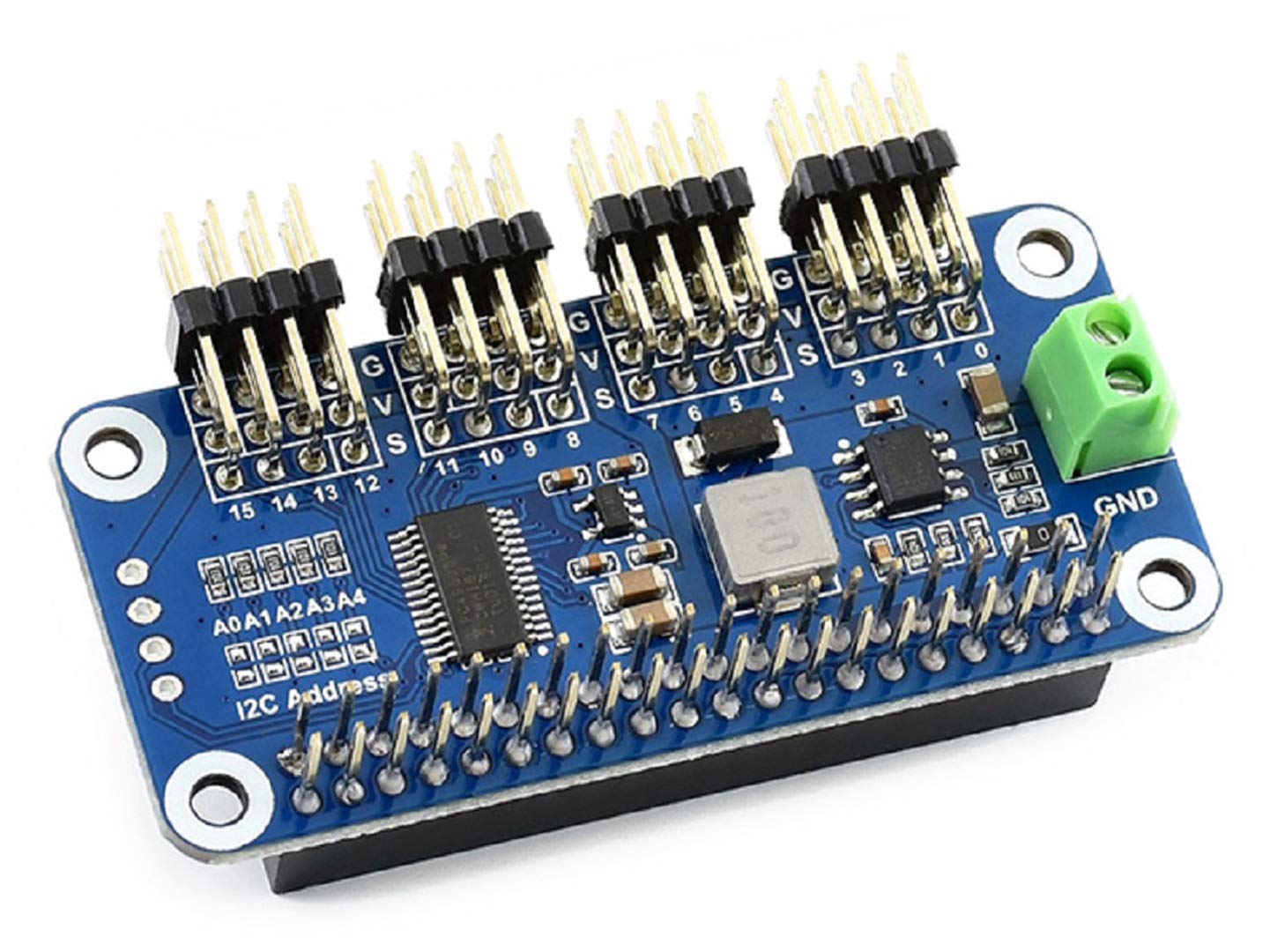

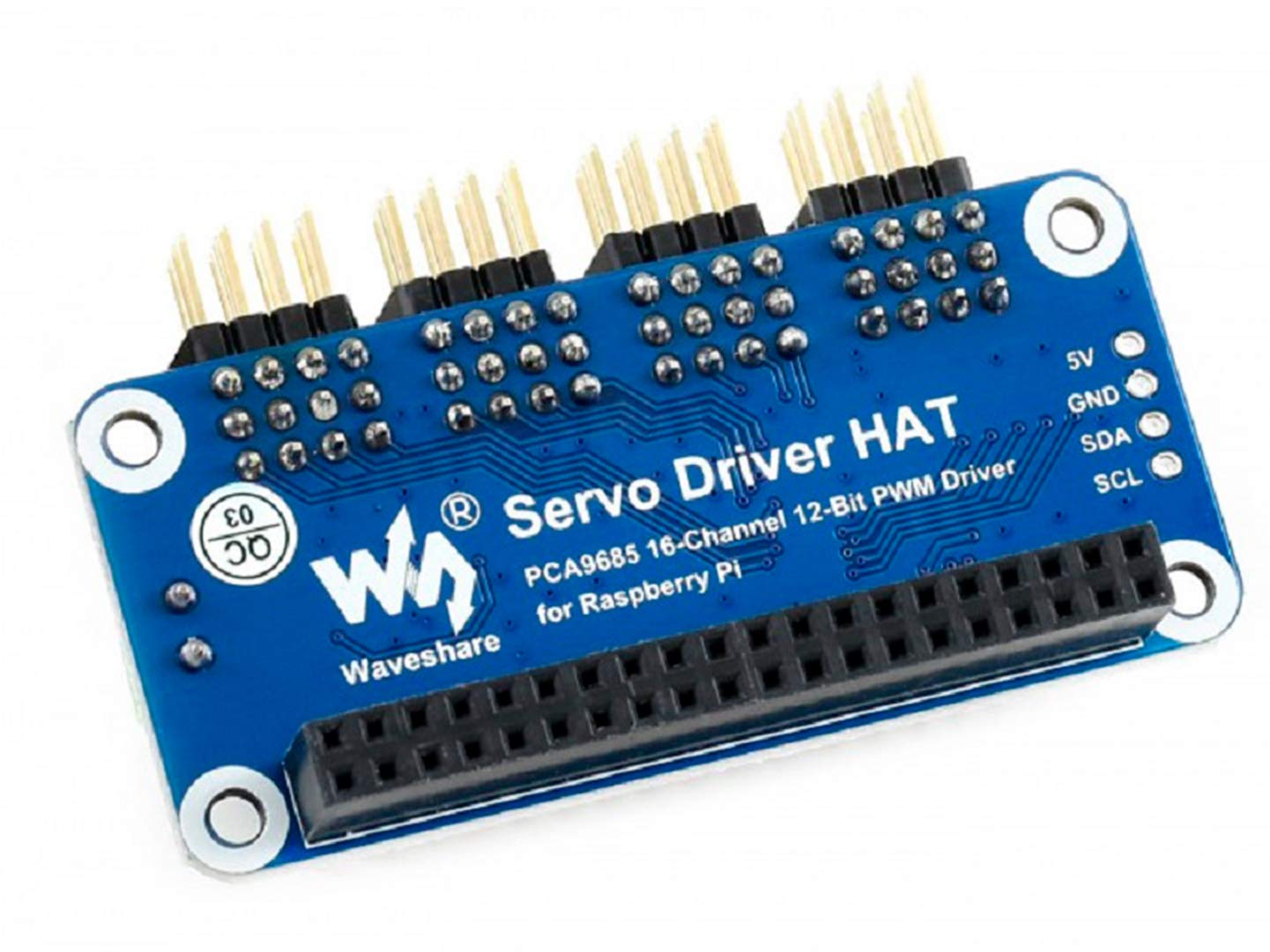

Raspberry Pi Servo Driver HAT (B) - 16-Channel PWM Output, 12-bit I2C Interface for Pi 4B/3B+/3B/2B/A+/Zero/Zero W/WH & Jetson Nano - Onboard Standard Servo Interface with Right Angle Pinheader - Perfect for Robotics, Automation, and DIY Electronics Projects

Product Description

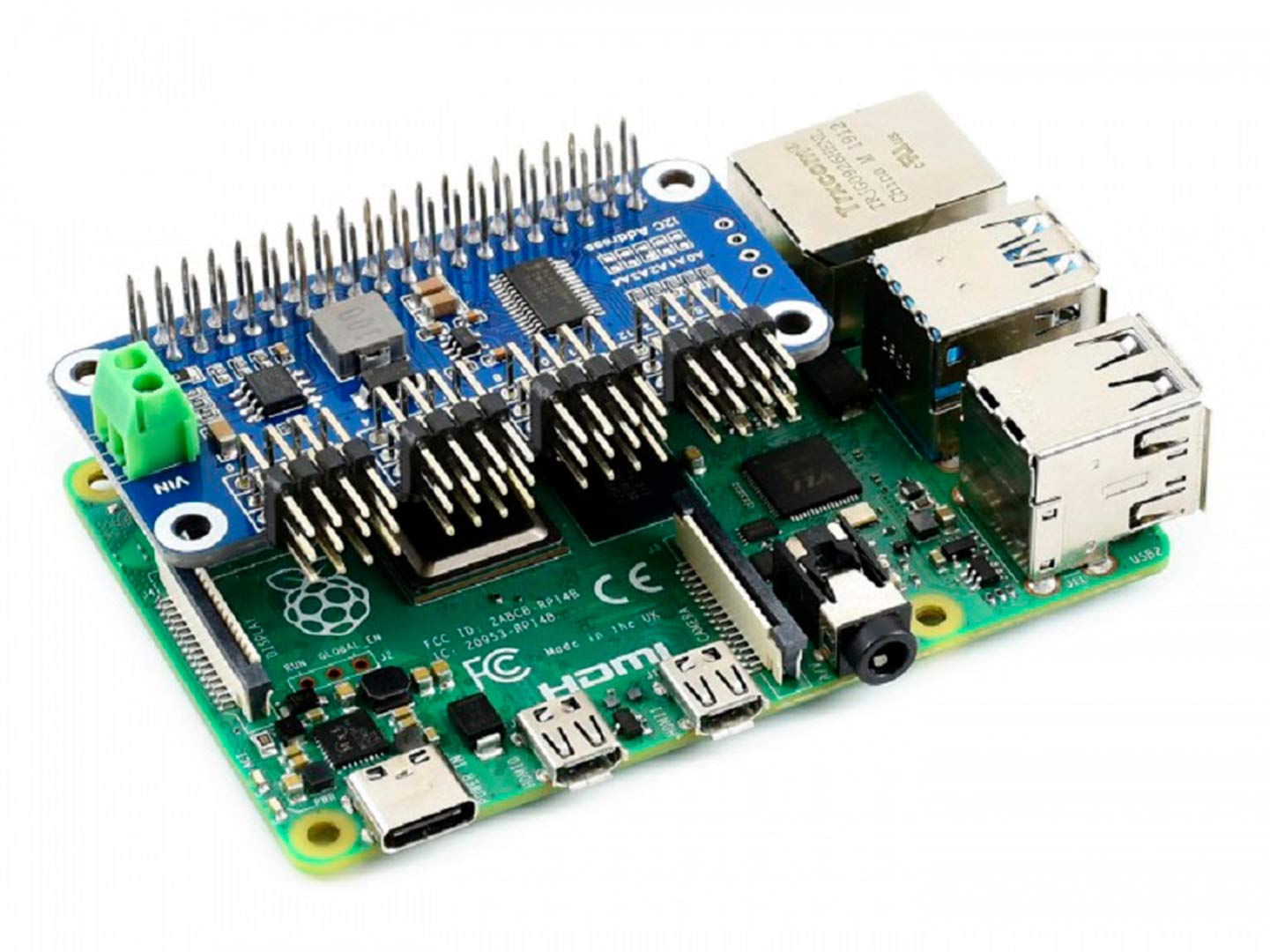

Servo Driver HAT (B) for Raspberry Pi, 16-Channel, 12-bit, I2C Interface, Right Angle Pinheader Overview Needless to say, the Raspberry Pi is powerful enough in most cases, yet it's not that good at providing precise PWM output. You may have tried to control a robotic arm or a hexapod walker by using the Pi, but finally get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver HAT for you. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson NanoI2C controlled, using only 2 pinsUp to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminalStandard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.Reserved I2C control pins, allows to work with other control boardsComes with development resources and manual (examples in python like Bluetooth/WiFi remote control)Specifications Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)Servo voltage: 5VLogic voltage: 3.3VDriver: PCA9685Control interface: I2CDimension: 65mm x 30mmMounting hole size: 3.0mmSupported Servo SG90 ServoMG90S ServoMG996R Servo Package Content 1.Servo Driver HAT (B) x1 2.RPi screws pack (2pcs) x1 Note: Raspberry Pi and servos are NOT included.
