300 Amp Circuit Breaker 12V-48V High Amperage with Manual Reset - Heavy Duty Protection for Car Audio, RV, Marine Boat, Truck, Trolling Motors, Stereo Systems & Solar Power - Ideal for Automotive, Marine and Off-Grid Electrical Applications
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:62743135
Product Description
Erayco 50A-300A Circuit Breaker Manual Reset DC 12-48V High Amp marine rated circuit breakers are specifically designed to meet the needs of marine applications but can also be used for trucks, buses, RVs, solar system, battery chargers and DC audio systems. High Amp Marine Rated Circuit Breakers Erayco Marine-Rated Surface Mount Circuit Breakers Our Marine Rated Circuit Breakers are specifically designed to meet the needs of marine applications, offering ignition protection per ABYC E-11. Usable as an ON/OFF switch, they have corrosion-resistant plating on stainless steel terminals. The Series 187 Marine Rated Circuit Breaker features a manual reset with switchable function and is single pole thermal type Thermal Breakers Spec Sheet Rating Options 50-300 Amps, 48V DC Interrupt Rating 5000 Amps @ 12V DC, 3000 Amps @ 24V DC, 1500 Amps @ 42V DC Operating Temperature Rating -40 °F (-40 °C) to 185 °F (85 °C) Storage Temperature Rating -40 °F (-40 °C) to 260 °F (125 °C) Materials Thermo-set Polyester Marking Standard marking includes amp/volt ratings Terminal Stud Size 5/16" - 18" Mounting Hole Accept #10 (M5) Screw Ingress Protection Rating IP66 Circuit Breaker Class Type III - switchable/manual reset - trip free Circuit breakers from Erayco 100A Circuit Breaker Add to Cart 30A Circuit Breaker Add to Cart 50A Circuit Breaker Add to Cart 100A Circuit Breaker Add to Cart 150A Circuit Breaker Add to Cart 200A Circuit Breaker Add to Cart 300A Circuit Breaker Add to Cart Customer Reviews 3.8 out of 5 stars 109 4.5 out of 5 stars 2,046 4.5 out of 5 stars 2,046 4.5 out of 5 stars 2,046 4.5 out of 5 stars 2,046 4.5 out of 5 stars 2,046 4.5 out of 5 stars 2,046 Price $23.99$23.99 $14.99$14.99 $15.89$15.89 $17.29$17.29 $17.99$17.99 $17.99$17.99 $18.99$18.99 Amperage 100 Amps 30 Amps 50 Amps 100 Amps 150 Amps 200 Amps 300 Amps Operating Voltage DC 12-48V DC 12-48V DC 12-48V DC 12-48V DC 12-48V DC 12-48V DC 12-48V Mounting Type Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Circuit Breaker Type Standard Standard Standard Standard Standard Standard Standard Manual Reset ✔ ✔ ✔ ✔ ✔ ✔ ✔ Circuit breakers from Erayco 100A Circuit Breaker Add to Cart 50A Circuit Breaker Add to Cart 80A Circuit Breaker Add to Cart 100A Circuit Breaker Add to Cart 150A Circuit Breaker Add to Cart 200A Circuit Breaker Add to Cart 300A Circuit Breaker Add to Cart Customer Reviews 3.8 out of 5 stars 109 4.5 out of 5 stars 483 4.5 out of 5 stars 483 4.5 out of 5 stars 483 4.5 out of 5 stars 483 4.5 out of 5 stars 483 4.5 out of 5 stars 483 Price $23.99$23.99 $16.89$16.89 $18.99$18.99 $18.99$18.99 $18.99$18.99 $18.99$18.99 $18.99$18.99 Amperage 100 Amps 50 Amps 80 Amps 100 Amps 150 Amps 200 Amps 300 Amps Operating Voltage DC 12-48V DC 12-48V DC 12-48V DC 12-48V DC 12-48V DC 12-48V DC 12-48V Mounting Type Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Panel & Surface Mount Circuit Breaker Type Standard Standard Standard Standard Standard Standard Standard Manual Reset ✔ ✔ ✔ ✔ ✔ ✔ ✔
Product Features
PRODUCT FUNCTION 300 amp circuit breaker can protects your trolling motor from electrical damage, prevents excessive current and stops power surges from damaging Amps.

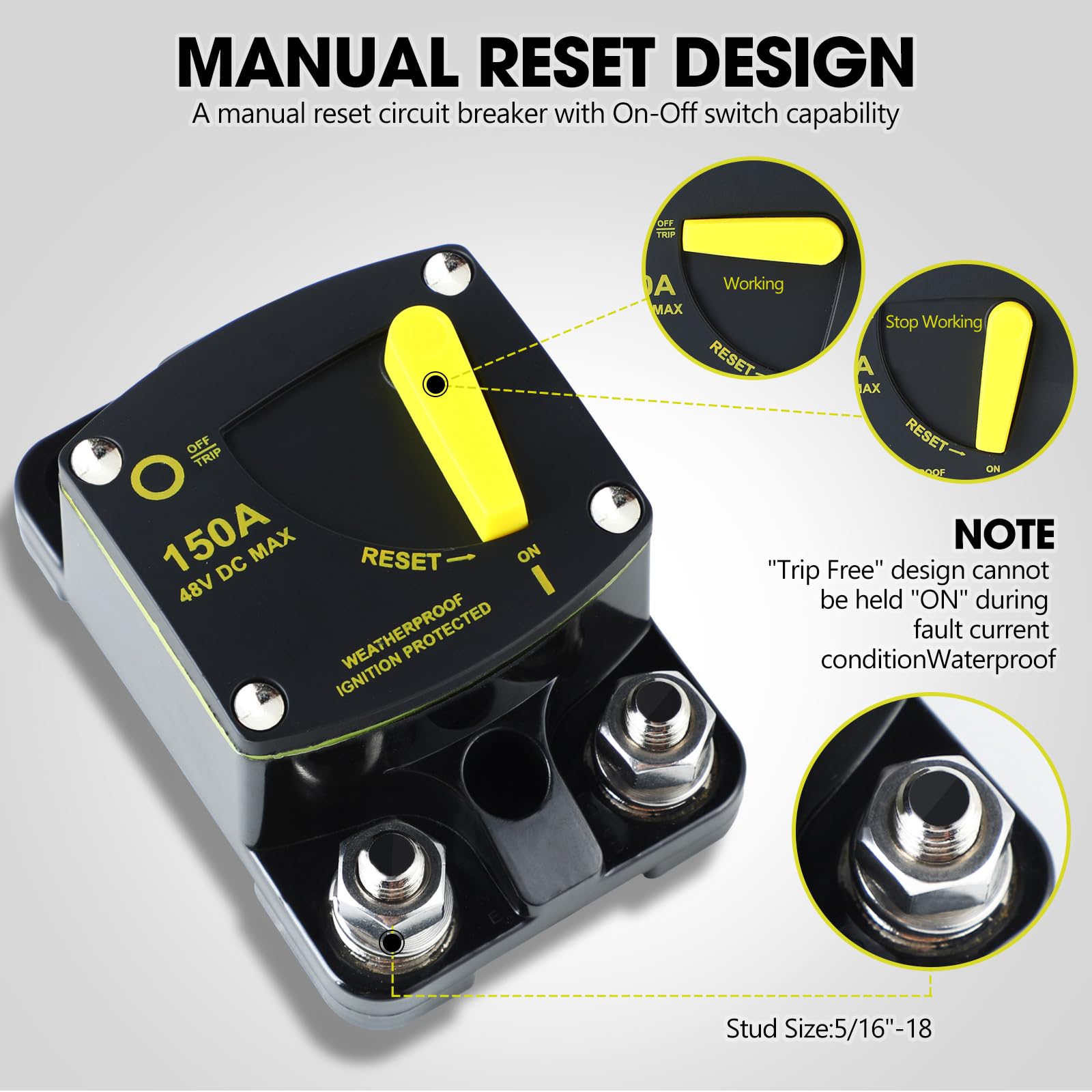

MANUAL RESET DESIGN Surface Mount 12v circuit breaker combines switching and circuit protection into a single device, manual reset arm is easy to operate, automatic testing and manual coverage. Unique flush mount design with pull-to-trip lever that functions as an on-off switch. Simple and convenient to be installed on the panel or firewall
ROBUST TERMINALS Large clearance around terminal studs accepts up to 1/0 AWG wire lugs. Recessed mounting holes for clean appearance. Robust 5/16"-18 terminals provide high torque connections
IGNITION PROTECTED Erayco 300 amp breaker DC 12V-48V manual reset button. All components meet SAE 1171 external circuit protection requirements
WIDE APPLICATION High amp marine rated circuit breakers are specifically designed to meet the needs of marine applications but can also be used for trucks, buses, RVs, solar system, battery chargers and DC audio systems
Customer Reviews
I bought this for a self built solar generator. I have three such DC circuit breakers in this system. One however, tripped and would not reset anymore. I cannot figure out why it tripped at all as the system is only for up to 1000 watts at 24V., so it never saw more than 35A at full draw. I decided to replace it with this Erayco 50 Amp breaker. Before installing it, I tested it out at least 20 times. With 2/0 welding cable, I pushed 40, 50 and 60 A through the breaker, and it functioned perfectly. Even at 50A, it held for over ten minutes without tripping. At 60A, it held for about 15 seconds before tripping. Reset was possible after a short cool down period.I feel confident in the breaker and installed it. It will never see 50A of current, but I know that if there is a runaway for some reason, it will trip and protect my system. it gets 5 stars for doing its job well.
