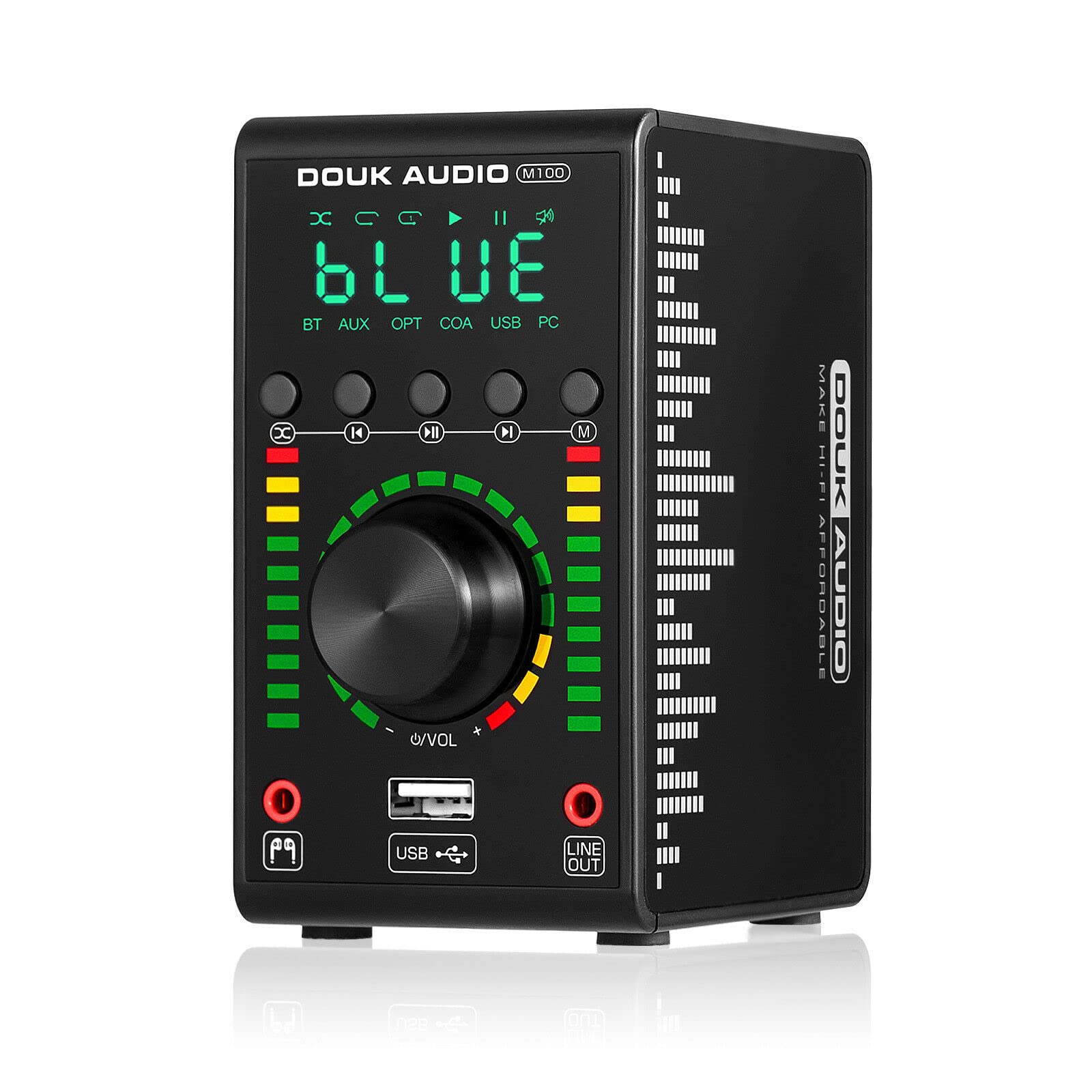

Douk Audio M100 Mini Bluetooth 5.0 Stereo Amplifier with USB/RCA/Coaxial/Optical Inputs, 24Bit/192K High-Resolution DAC for Home Theater, Gaming & Music Streaming
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:27 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:63118181
Product Description

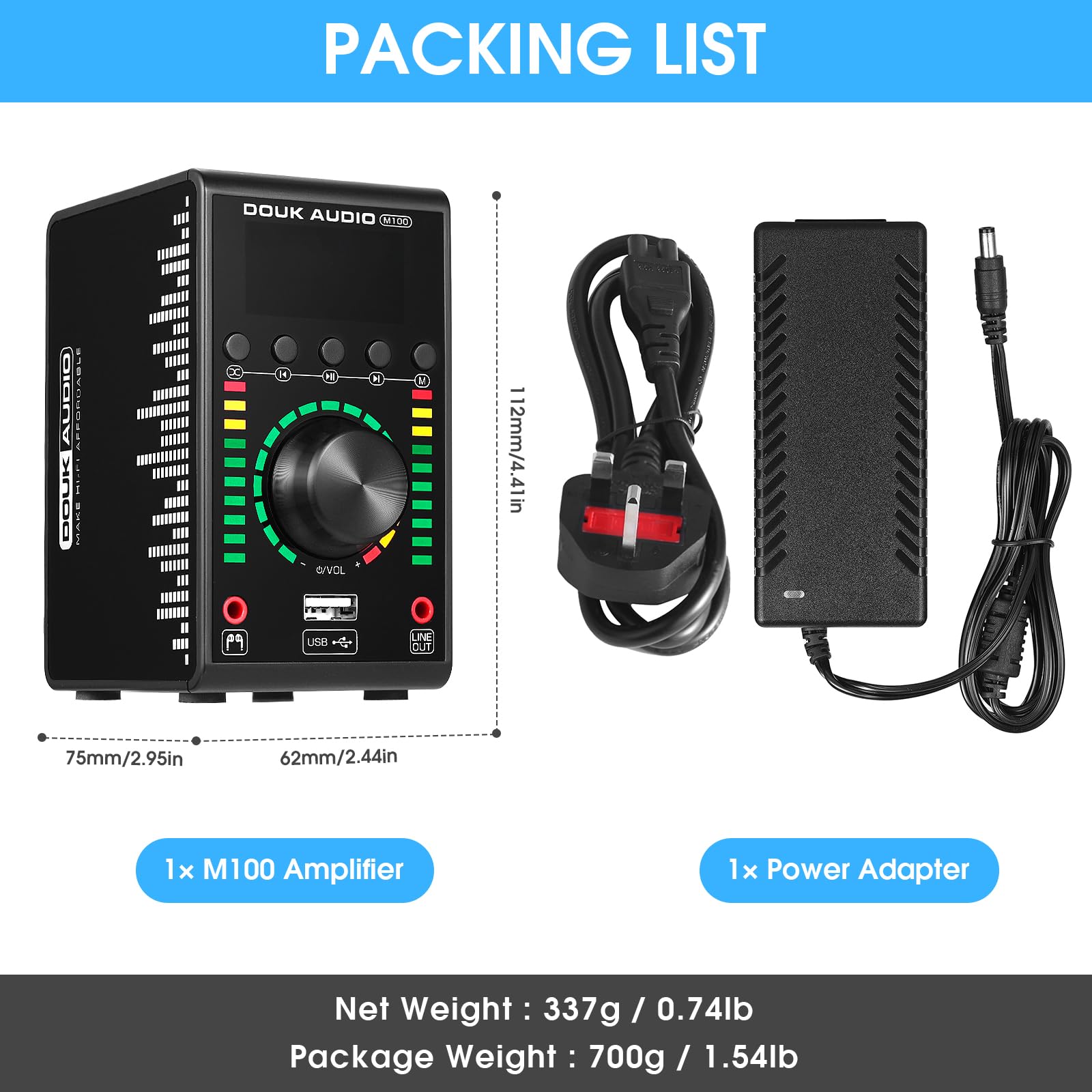

Warm tips: USB input also supports mobile phones that with OTG functions, but Android system needs OTG cable and IOS system needs camera kit, please prepare by yourself. Not guarantee compatible with all mobile phones OTG. Parameters Audio input: Bluetooth 5.0 / USB (PC-USB / U-disk) / Coaxial / Optical / Stereo RCA Audio output: banana speaker jacks / 3.5mm headphone jack / 3.5mm AUX Amp Chip: Infineon MA12070 Output power: 68W+68W Output impedance: 4/6/8/16Ω Sampling Rate: 24bit/192kHz (Optical / Coaxial) 16bit/44.1kHz (USB) U-disk formats supported: MP3 / WMA / WAV / APE / FLAC U-disk format: FAT32 (not support NTFS) Working voltage: DC 9-20V Power interface specification: 5.5mm / 2.1-2.5mm Dimensions(W*D*H): 62*75*112mm / 2.44*2.95*4.41in Net weight: 337g / 0.74lb Package weight (without power adapter): 500g / 1.10lb Package weight (with power adapter): 700g / 1.54lb Packing List 1*M100 Amplifier 1*DC 12V Power Adapter
Product Features

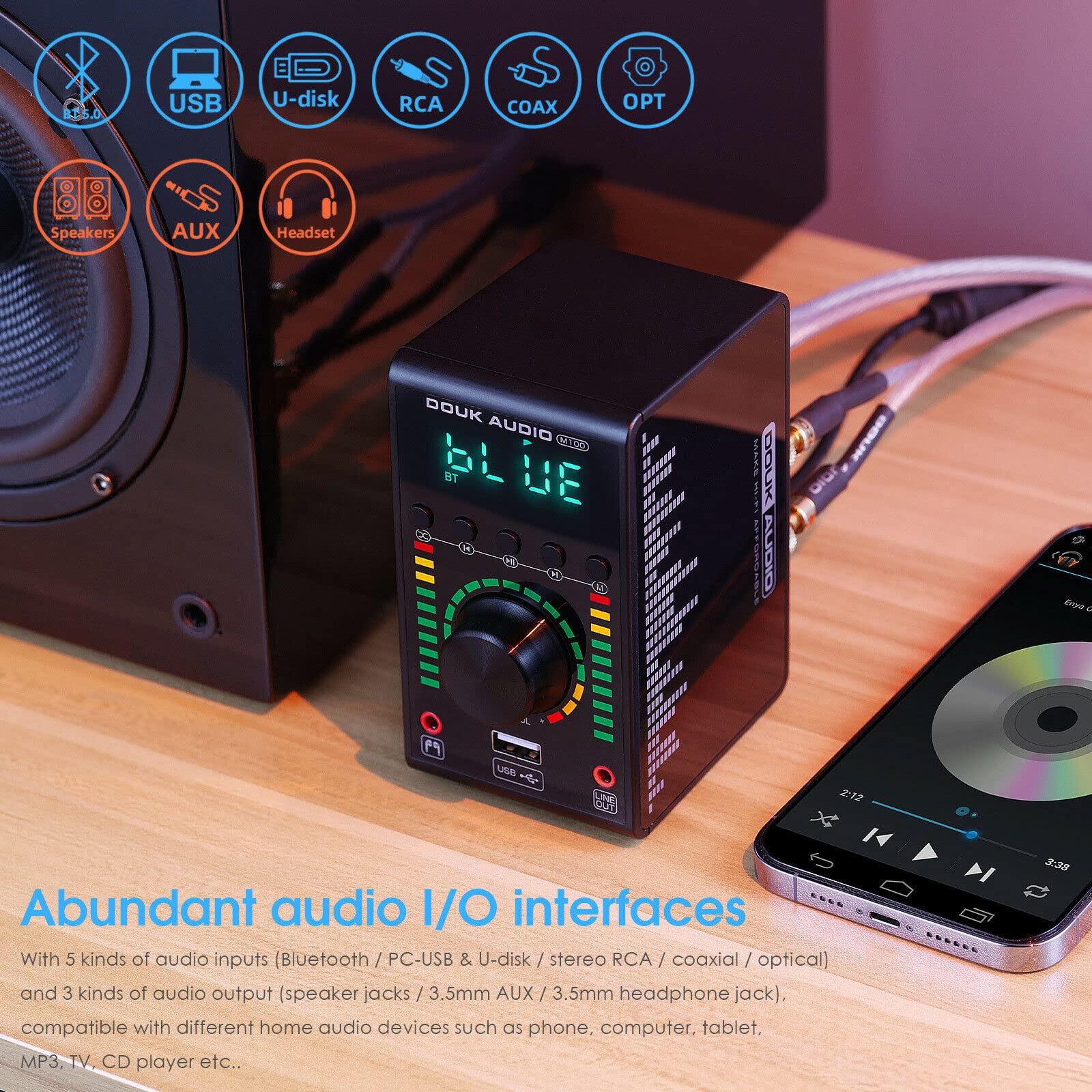

Multi-Interface Connectivity Equipped with 5 audio inputs (Bluetooth, PC-USB, U-disk, RCA, coaxial, optical) and 3 outputs (speaker jacks, 3.5mm AUX, headphone jack) for seamless integration with a variety of home audio devices. such as phone, computer, tablet, MP3, TV, CD player etc..
Versatile Audio Playback USB interface supports PC-USB and U-disk, playing lossless formats like WMA, WAV, APE, FLAC, and functioning as a digital music player. The 3.5mm AUX preamp output allows for multichannel stereo systems.
High-Power Output Powered by the Infineon MA12070 chip, delivering up to 68W+68W, the M100 effortlessly drives most home passive speakers (4-16Ω) with a wide DC 9-20V working voltage.
Portable and Versatile Suitable for home, car, motorcycle, and marine stereo systems, the M100 ensures HiFi music enjoyment on the go with its wide working voltage range.
LED Indicator and Design Features an RGB LED sound level meter for visual volume cues and a display screen showing real-time status, perfect for audiophiles seeking a HiFi experience.
